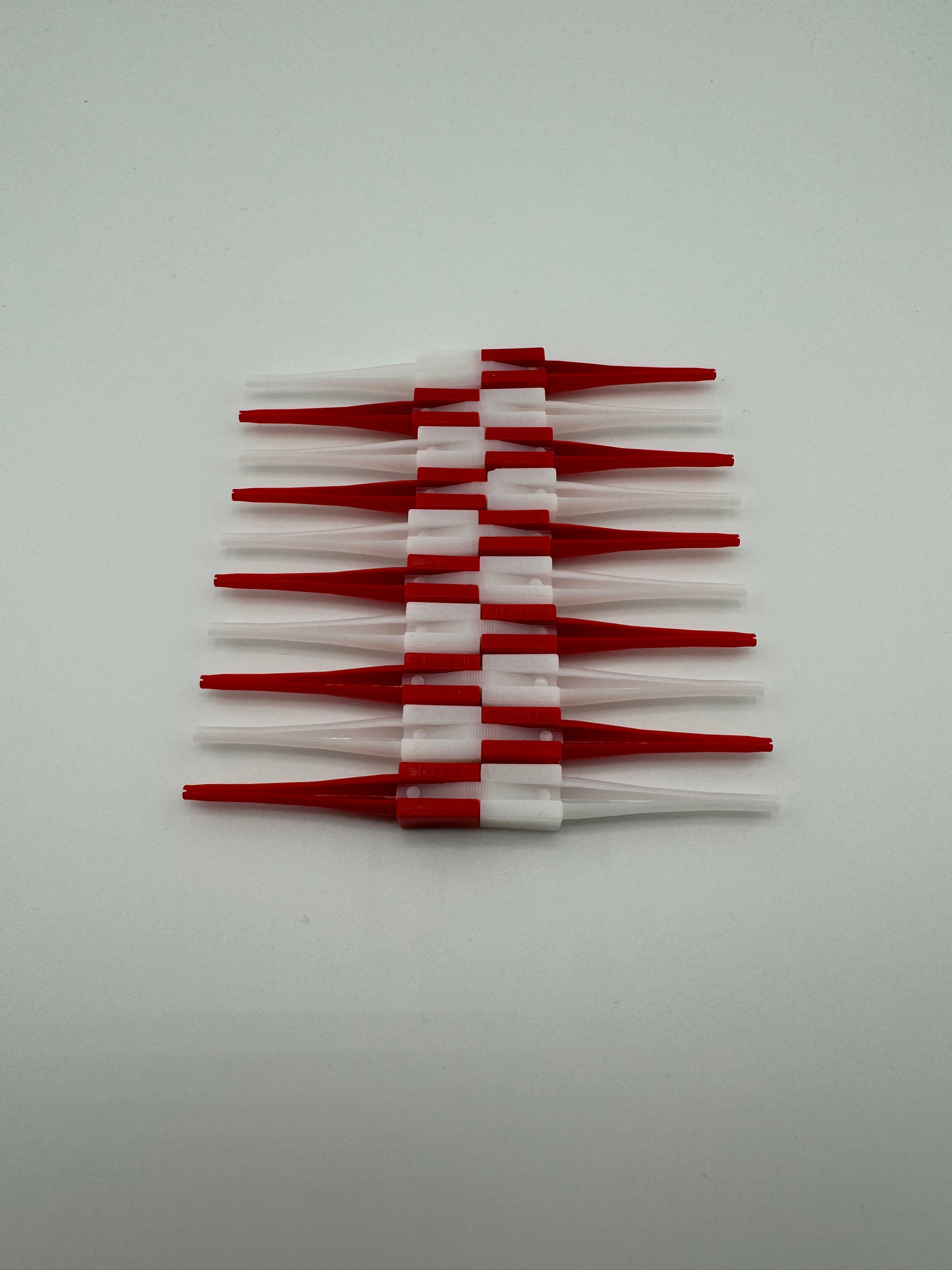

Insertion & Removal Tool (Pack of 10) M81969/14-02 - Red/White Plastic - Size 20
Insertion & Removal Tool (Pack of 10) M81969/14-02 - Red/White Plastic - Size 20

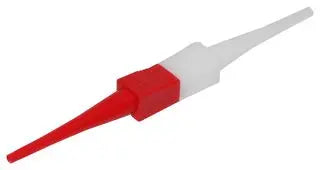

The M81969/14 is an all plastic insertion & removal tool designed for rear release connectors
Part Number |
Contact Size |
Installing Tip |
Removal Tip |
M81969/14-01 /1 |
22D, 22N |
GREEN |
WHITE |
M81969/14-03 /1 |
16 |
BLUE |
WHITE |
M81969/14-04 /1 |
12 |
YELLOW |
WHITE |
M81969/14-05 /2 |
10 |
GREY |
WHITE |
M81969/14-06 /2 |
8 |
N/A |
RED |
M81969/14-07 /2 |
4 |
N/A |
BLUE |
M81969/14-08 /2 |
0 |
N/A |
YELLOW |
M81969/14-10 /1 |
20 |
RED |
ORANGE |
M81969/14-11 /2 |
20 |
RED |
WHITE |
M81969/14-12 /1 |
8 |
N/A |
GREEN |
/1 MIL-DTL-55302/68, /69, MIL-DTL-38999, MIL-DTL-24308 (SIZE 22D), MIL-DTL-83733 (SIZE 22D), AS81714 (SIZE 22D)
/2 MIL-DTL-26482 SERIES II, AS81703 SERIES III, MIL-DTL-83733 (EXCEPT 22D), MIL-DTL-83723 SERIES I| & III, AS50151, AS81714 (EXCEPT 22D)
